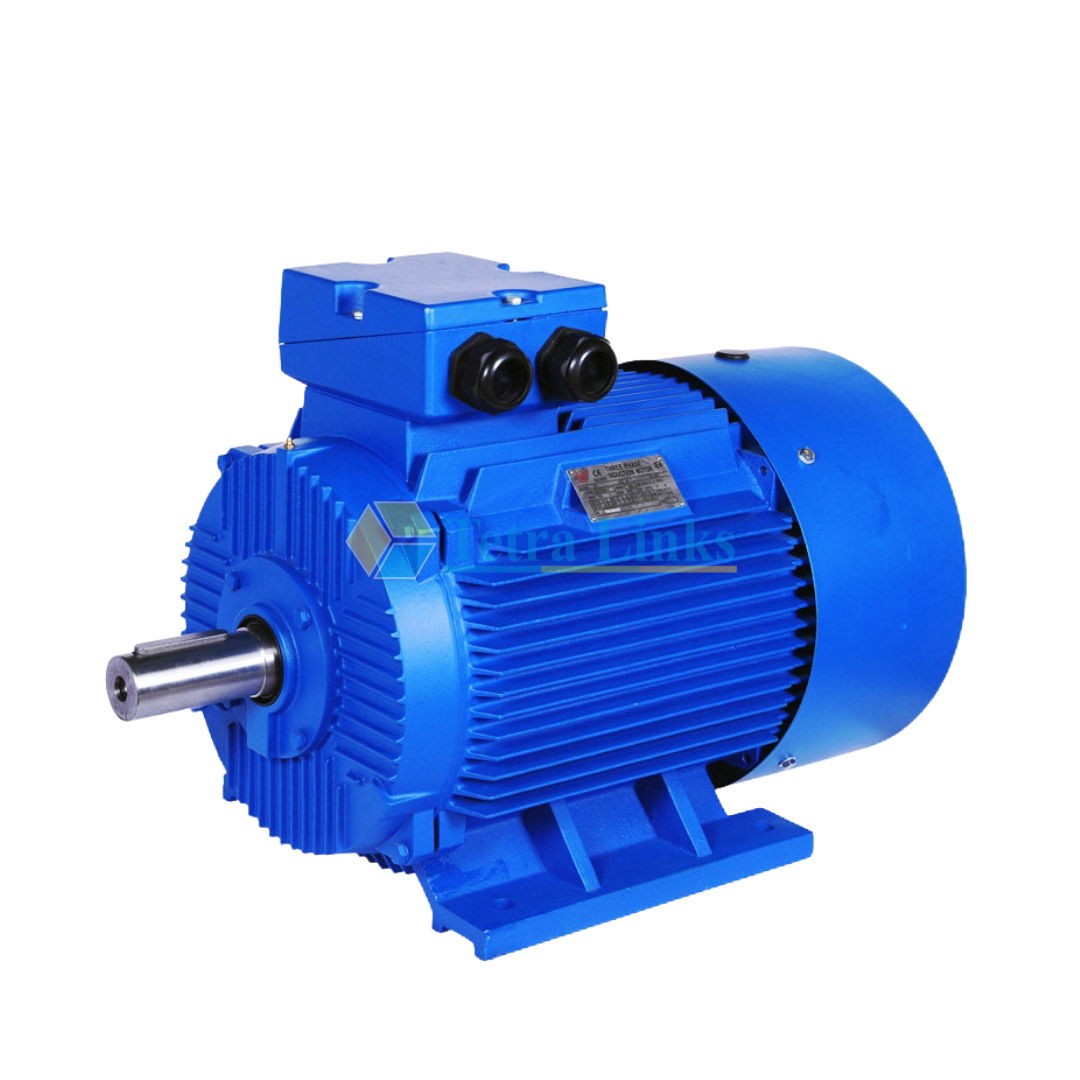

CDF SDF SERIES THREE-PHASE MOTOR
1) Available in 2,4,6 pole variants with efficiency grade 1 according to GB60034-30 and efficiency class IE2 according to IEC60034-30
2) Optimized compact style construction
3) Standard mounting construction according to IEC60034-7; IMB3, IMB5, IMB35, IMB14, IMB34, IMV1, IMV3 and etc
4) AII motors are designed to IP55 degree of protection(IEC60034-5)
5) Winding protections with PTC, PT100 and KTY84-130 as option
6) Insulation system is designed for temperature class 155°C(F). At rated output with line-fed operation, the motors can be used in temperature class 130°C(B)
Description
INTRODUCTION:
Adopting the national uniform design, Y2 series three-phase induction motors are in conformity with IEC 34-1 and JB/T8680 standards, also up to the international advanced level of the 90’s. As the substitute of Y series induction motors, it possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc. CDF, SDF series three phase motors are newly designed by our company for the European and American markets on the basis of Y2 series. Its rated power and mounting sizes are quite same as Y2 series. The efficiency of CDF and SDF can meets standards of EFF2 and EFF1. The motors are adopted in class F (Temperature rise B) insulation and IP55 protection. Motors can be equipped with PTC, as well as re-greasing system for frame size 160 and above, bearings of SKF, NSK or NTN at optional.
| TECHNICAL DATA | |
| Housing metrial: | Cast Iron/aluminum |
| Output range: | 0.55KW~315KW |
| Pole: | 2/4/6/8 |
| Terminal Box: | Top/Side Mounted |
| Protection Class: | IP55 |
| Insulation Class: | F/H |
| Bearing: | SKF/NSK/Chinese |
| Frequency: | 50/60HZ |
| Efficiency Standard: | IEC60034-30 IE1 |
| Operating Conditions | |
| Ambient temperature: | -15º C~40º C |
| Altitude: | not exceed 1000m |
| Rated voltage: | 380V(at buyer’ s option) |
| Rated frequency: | 50HZ 60HZ(at buyer’ s option) |
| Cooling method: | IC 411 |
| Duty: | S1 |
