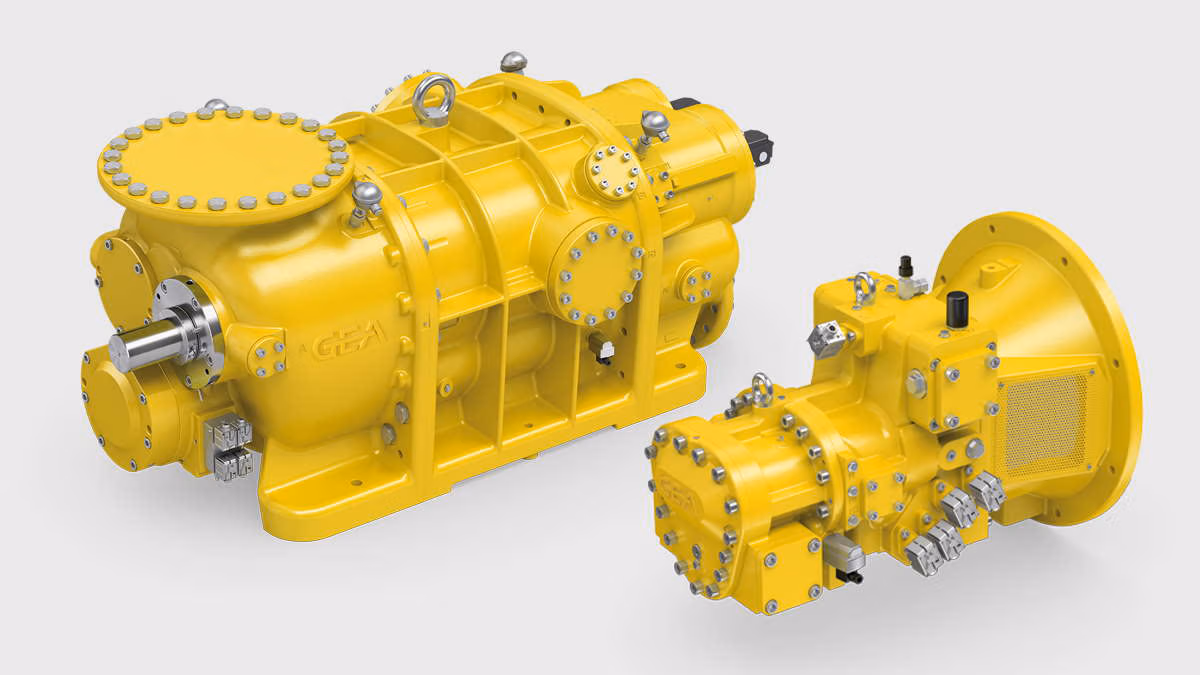

Gas Screw Compressors
System solution planners benefit from an advanced portfolio of GEA screw compressors optimized for compressing natural and industrial gases.
GEA gas screw compressors are key system components in oil & gas extraction and processing operations, in power generation plants with gas turbines, in chemical processing and in numerous other industries.
The compressors are designed for long operating life and high availability and can be provided according to various guidelines, such as API 619 and other international standards.
Why screw compressors for gas compression?
Screw compressors operate by drawing gas into the spaces between the lobes of two rotors. As the rotors turn, the gas is forced by the rotor profile into continuously decreasing space until it reaches the discharge port of the compressor. The compressors do not generate out-of-balance forces; therefore, they require significantly low foundation strength.
Highlights
- Medium: natural gas, biogas, process gas, synthetic gas, mixed gas
- Swept volume: 231 – 13,846 m³/h / 135 – 8,149 cfm
- Design pressure: 28 bar / 406 psi, 52 bar / 754 psi, other upon request
- Applications: Natural gas extraction, gas storage, flare gas recovery, landfill, power plants
- Design standards:
- API 619
- ATEX
- ISO10440
- UL
- Germanischer Lloyd
- Bureau Veritas
- more upon request
- Speed range: 1,000-6,000 rpm (GEA Grasso M, C/D/E/G) / 1,000-4,500 rpm (GEA Grasso M, H/L/M/N) / 1,450-3,600 rpm (GEA Grasso LT)
Advantages at a glance
- Outstanding energy-efficiency
- Extremely long operating life
- High availability
- Easy and low maintenance
- Wide range of suitable gases
- Design customization according to various guidelines
Technical data (metric units)
| Compressor type | Swept volume (m3/h) |
Max. design. pressure (bar) |
Weight (kg) |
||
|---|---|---|---|---|---|
| 2940 rpm |
3550 rpm |
4500 rpm |
|||
| GEA Grasso M – C (GAS) | 231 | 279 | 354 | 28 | 3921 |
| GEA Grasso M – D (GAS) | 265 | 320 | 406 | 28 | 4011 |
| GEA Grasso M – E (GAS) | 321 | 388 | 491 | 28 | 4441 |
| GEA Grasso M – G (GAS) | 372 | 449 | 569 | 28 | 4511 |
| GEA Grasso M – H (GAS) | 471 | 569 | 721 | 28/52 | 5811 |
| GEA Grasso M – L (GAS) | 544 | 657 | 833 | 28/52 | 6051 |
| GEA Grasso M – M (GAS) | 708 | 855 | 1084 | 28/52 | 7721 |
| GEA Grasso M – N (GAS) | 870 | 1051 | 1332 | 28/52 | 8001 |
| GEA Grasso LT – P (GAS) | 805 | 972 | – | 28/52 | 595 |
| GEA Grasso LT – R (GAS) | 1040 | 1256 | – | 28/52 | 895 |
| GEA Grasso LT – S (GAS) | 1290 | 1558 | – | 28/52 | 960 |
| GEA Grasso LT – T (GAS) | 1460 | 1763 | – | 28/52 | 1060 |
| GEA Grasso LT – V (GAS) | 1740 | 2101 | – | 28/52 | 1186 |
| GEA Grasso LT – W (GAS) | 1990 | 2403 | – | 28/52 | 1200 |
| GEA Grasso LT – Y (GAS) | 2390 | 2886 | – | 28/52 | 1308 |
| GEA Grasso LT – Z (GAS) | 2748 | 3318 | – | 28/52 | 1670 |
| GEA Grasso LT – XA (GAS) | 3250 | 3924 | – | 28/52 | 1740 |
| GEA Grasso LT – XB (GAS) | 4150 | 5011 | – | 28/52 | 2100 |
| GEA Grasso LT – XC (GAS) | 4900 | 5917 | – | 28/52 | 2400 |
| GEA Grasso LT – XD (GAS) | 5800 | 7003 | – | 28/52 | 2600 |
| GEA Grasso LT – XE (GAS) | 7110 | 8585 | – | 28/52 | 3500 |
| GEA Grasso LT – XF (GAS) | 8560 | 10.336 | – | 28 | 3850 |
| GEA Grasso LT – XG (GAS) | 9807 | 11.842 | – | 28 | 4500 |
| GEA Grasso LT – XH (GAS) | 11.467 | 13.846 | – | 28 | 4700 |
1 with coupling housing
Technical data (imperial units)
| Compressor type | Swept volume (cfm) |
Max. design. pressure (psi) |
Weight (lb) |
||
|---|---|---|---|---|---|
| 2940 rpm |
3550 rpm |
4500 rpm |
|||
| GEA Grasso M – C (GAS) | 135 | 164 | 208 | 406 | 8641 |
| GEA Grasso M – D (GAS) | 155 | 188 | 238 | 406 | 8841 |
| GEA Grasso M – E (GAS) | 188 | 228 | 288 | 406 | 9781 |
| GEA Grasso M – G (GAS) | 218 | 264 | 334 | 406 | 9941 |
| GEA Grasso M – H (GAS) | 277 | 334 | 424 | 406/754 | 12801 |
| GEA Grasso M – L (GAS) | 320 | 386 | 490 | 406/754 | 13331 |
| GEA Grasso M – M (GAS) | 416 | 503 | 638 | 406/754 | 17011 |
| GEA Grasso M – N (GAS) | 512 | 618 | 783 | 406/754 | 17631 |
| GEA Grasso LT – P (GAS) | 473 | 572 | – | 406/754 | 1311 |
| GEA Grasso LT – R (GAS) | 612 | 739 | – | 406/754 | 1973 |
| GEA Grasso LT – S (GAS) | 759 | 917 | – | 406/754 | 2116 |
| GEA Grasso LT – T (GAS) | 859 | 1037 | – | 406/754 | 2336 |
| GEA Grasso LT – V (GAS) | 1024 | 1236 | – | 406/754 | 2614 |
| GEA Grasso LT – W (GAS) | 1171 | 1414 | – | 406/754 | 2645 |
| GEA Grasso LT – Y (GAS) | 1406 | 1698 | – | 406/754 | 2883 |
| GEA Grasso LT – Z (GAS) | 1617 | 1952 | – | 406/754 | 3681 |
| GEA Grasso LT – XA (GAS) | 1912 | 2309 | – | 406/754 | 3836 |
| GEA Grasso LT – XB (GAS) | 2442 | 2949 | – | 406/754 | 4629 |
| GEA Grasso LT – XC (GAS) | 2884 | 3482 | – | 406/754 | 5291 |
| GEA Grasso LT – XD (GAS) | 3413 | 4121 | – | 406/754 | 5732 |
| GEA Grasso LT – XE (GAS) | 4184 | 5052 | – | 406/754 | 7716 |
| GEA Grasso LT – XF (GAS) | 5038 | 6083 | – | 406 | 8487 |
| GEA Grasso LT – XG (GAS) | 5772 | 6969 | – | 406 | 9920 |
| GEA Grasso LT – XH (GAS) | 6749 | 8149 | – | 406 | 10,361 |
1 with coupling housing
